Number of dental chair units:

Suitable for up to 4 dental chair units.

Equipment:

Designed for treating medical wastewater generated during dental treatment procedures at hospitals or dental clinics; features automatic filtration, disinfection, and discharge functions.

Operating Conditions :

Environmental Conditions ：

1. Ambient Temperature: 5°C – 40°C;

2. Relative Humidity: ≤ 70%;

3. Atmospheric Pressure: 86 – 106 kPa;

4. Ventilation Flow Rate: ≥ 0.30 m³/s;


Power Supply Requirements

1. Rated Voltage: AC 220 V ±10%;

2. Frequency: 50 Hz;

3. Rated Power: 170 W;



Technical Specifications:

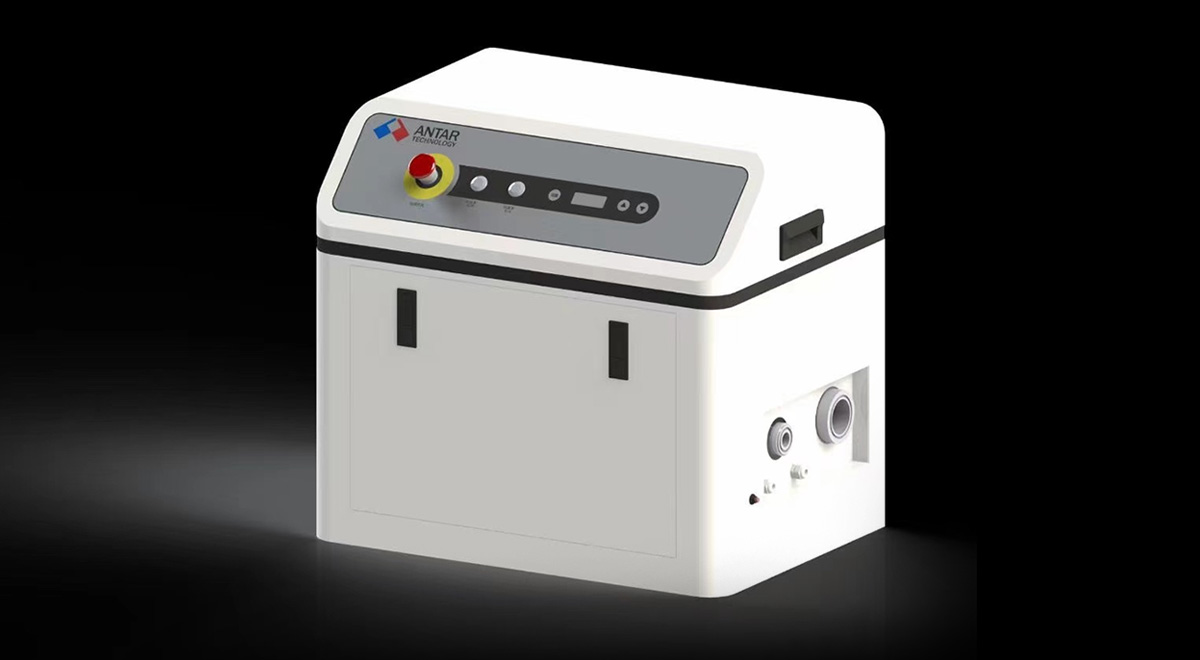

    1.The WS-30 wastewater treatment unit supports two operating modes: gravity flow mode and self-priming mode;

    2. Equipped with the renowned Rijing Water Pump, with a maximum flow rate of 1.5 m³/h;

    3. Features an integrated modular disinfection system with an external influent filtration unit, facilitating routine maintenance and cleaning;

    4. Utilizes an ozone reaction-based disinfection method, achieving an ozone concentration of up to 3 g/h;

    5. Incorporates a built-in ozone refinement device that effectively increases ozone solubility, thereby enhancing disinfection efficiency;

    6. Features a large-capacity 25 L wastewater reaction tank, ensuring more thorough ozone dissolution and reaction;

    7. Automatic start-stop function with a built-in high-precision water level sensor;

    8.Utilizes thickened PVC connection fittings and an antioxidant-resistant hose;

    9. Features a large-diameter disinfectant feed port, enabling dual sterilization as required;

   10. Microcomputer control system with three operating modes: automatic, manual, and cycle;

   11. Equipped with an emergency switch for temporarily activating the water pump and ozone system; in the event of equipment malfunction, this emergency function provides users with sufficient time to await repair or assistance;

   12. Noise level: ≤50 dB;

   13. External dimensions (height × width × length): ≤50 × 45 × 55 cm;

   14. Net weight: ≤40 kg;

Configuration List:

Wastewater Treatment Unit X1,

Water Level Sensor X1,

Filter X1,

Suction Pipe X1,

Drainage Pipe X1
