Number of dental comprehensive treatment chairs equipped:

Suitable for use with 4 to 6 dental comprehensive treatment chairs.

Equipment Use:

This dental treatment device, intended for use in hospitals or dental clinics, serves as the power source for both the high-speed turbine dental handpiece and the low-speed pneumatic motor handpiece during procedures such as tooth drilling.

Operating Conditions:

Environmental Conditions :

1. Ambient Temperature: 5°C – 40°C

2.  Relative Humidity: ≤ 70%

3.  Atmospheric Pressure: 86 – 106 kPa

4.  Ventilation Flow Rate: ≥ 0.10 m³/s


Power Supply Requirements

1. Rated Voltage: AC 220 V ±10%

2. Frequency: 50 Hz

3.  Rated Power: 2.7 kW

4.  oise Level: ≤ 76 dB

5. Air Tank Capacity: 90 L V.


Technical Specifications :

1. Oil-free piston-type air compressor; Motor Speed: ≥ 1400 rpm; Nominal Flow Rate: 60 L/min (0.7 MPa);

2. Three compressor heads operate in parallel, paired with a 90 L air storage tank, sufficient for powering 4–6 dental comprehensive treatment units (at 0.5 MPa);

3. The air storage tank is treated for rust prevention;

4. The three motors start in sequence to reduce inrush current;

5. Each motor can be started and stopped independently;

6. Microcomputer controller with under-voltage protection and overcurrent protection;

7. Equipped with an automatic drain valve for timed drainage to prevent water accumulation in the tank and extend the service life of both high-and low-speed handpieces.

8. External dimensions (height × width × depth): ≤96 × 44 × 75 cm;

9. Weight: ≤102 kg;

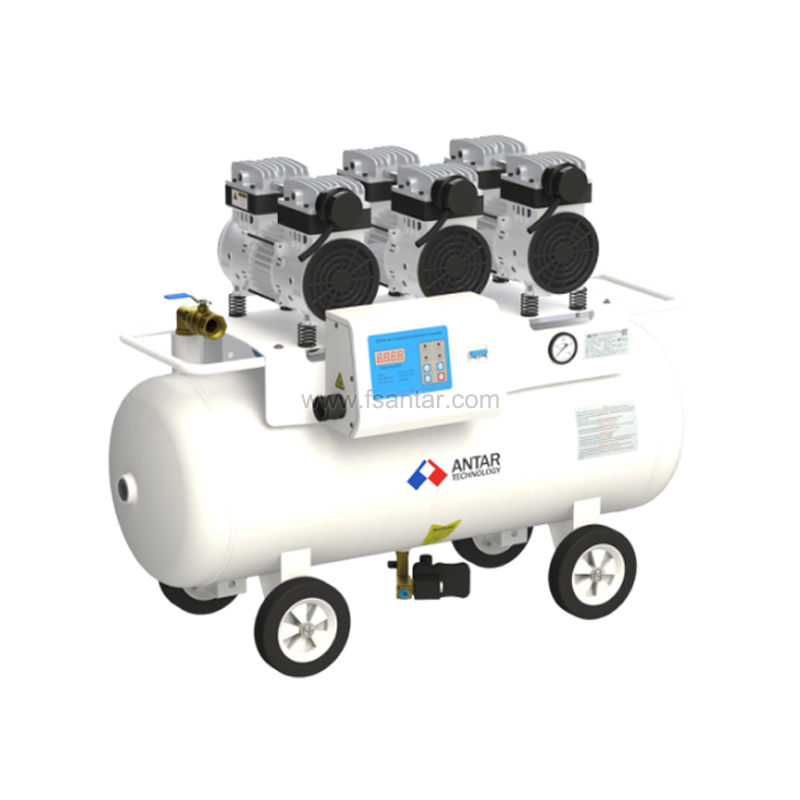

Electric Oil-Free Compressor System Configuration List：

Air compressor ×1;

 Mobile casters ×4;

Connecting steel hose ×1;

Air intake silencer filter ×3;

Drainage hose ×1
